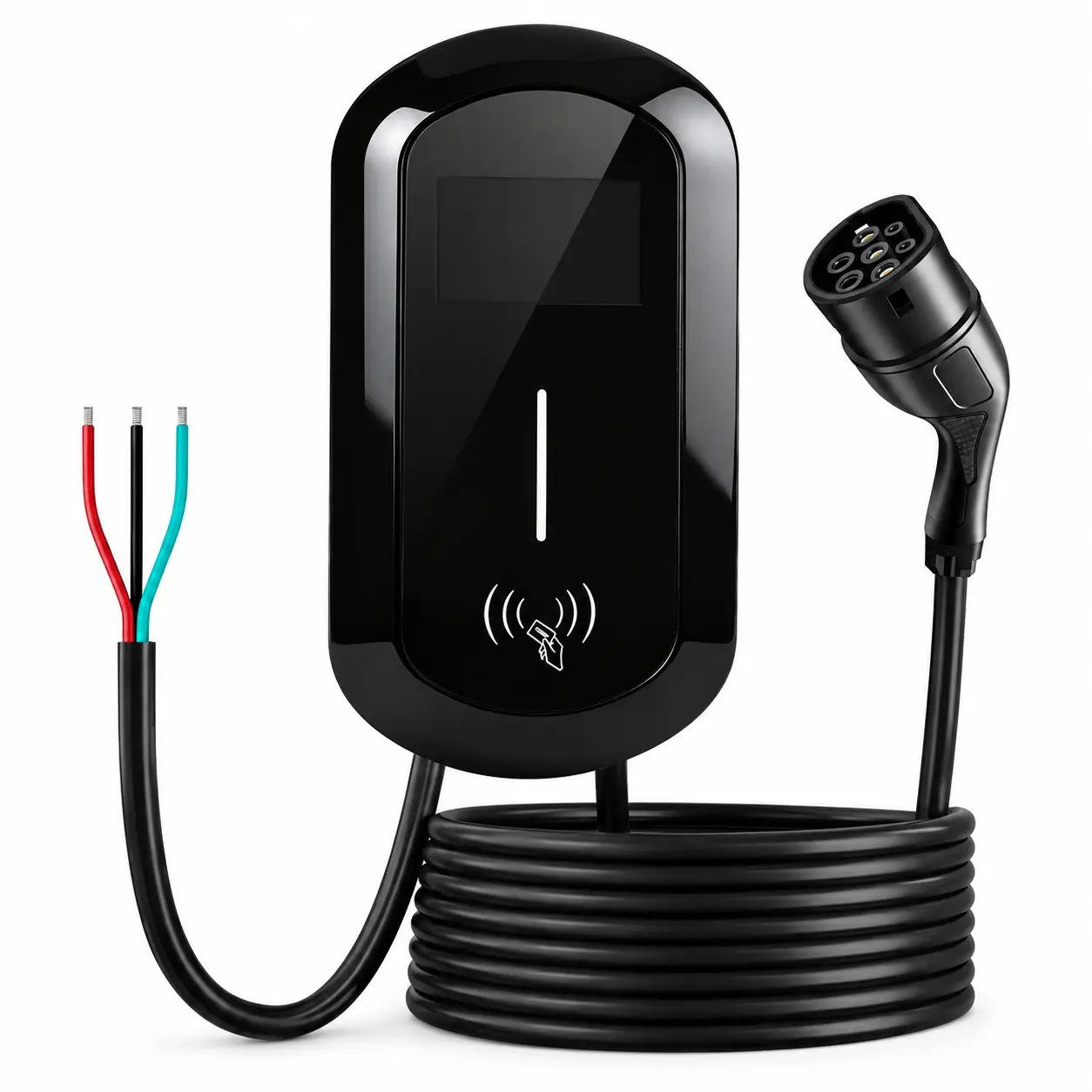

Wall-Mounted & Pedestal EV Charging Station with APP, RFID and OCPP
A flexible AC charging solution for residential, workplace and commercial EV charging applications.
Available in 7kW, 11kW and 22kW, this charger combines adjustable charging current, scheduled charging and multiple access options in one compact unit. Depending on the project requirement, the charger can be configured with Type 2, Type 1, NACS or GB/T connector, making it suitable for different markets and vehicle standards.
Wi-Fi, Bluetooth, RFID, DLB and APP functions provide convenient everyday operation, while OCPP, 4G and Ethernet options make the charger suitable for networked charging and commercial projects.
Key Features
> 7kW / 11kW / 22kW
> Single-Phase / Three-Phase
> Type 2 / Type 1 / NACS / GB/T
> RFID + APP Control
> Adjustable Current & Scheduled Charging
> Dynamic Load Balancing Optional
> OCPP 1.6 Optional
> IP65 + 5.64″ LCD
Smart Charging Control
Adjustable Charging Current
Adjust charging current according to available electrical capacity and vehicle requirements for more flexible charging.
Scheduled Charging
Set preferred charging times to optimize charging schedules and take advantage of off-peak electricity tariffs.
APP Control
Start or stop charging, adjust current, schedule charging and monitor charging status through the mobile APP.
Dynamic Load Balancing
Optional DLB automatically adjusts charging power according to real-time property load, helping prevent overload and optimize available electrical capacity.
Flexible Charging Access & Connectivity
Choose Plug & Play or RFID access for local charging, or connect the charger to an APP or OCPP platform for managed installations.
Plug & Play
Start charging automatically after connecting the vehicle, ideal for simple residential charging applications.
RFID Access
RFID card authorization provides controlled charging access for apartments, offices, hotels and shared parking facilities.
Wi-Fi & Bluetooth
Connect the charger to the mobile APP for convenient local and remote charging management.
4G / Ethernet
Optional 4G and Ethernet communication provide additional connectivity for commercial and managed charging applications.
OCPP 1.6
Optional OCPP 1.6 connectivity enables integration with compatible charging management platforms for commercial charging projects.
Multiple Connector Standards
One charger platform can be configured with different EV charging connectors for different international markets.
Type 2
Suitable for most European EV charging applications.
Type 1
Available for markets and vehicles using SAE J1772 charging connectors.
NACS
Available for projects requiring the North American Charging Standard.
GB/T
Available for vehicles and charging projects using the Chinese GB/T standard.
5.64-Inch LCD Display
Clear, real-time charging information for easier operation and monitoring.
Charging Data
Current · Voltage · Power · Energy
Charging Status
Connection · Charging · Standby
Charging Time
Real-time charging duration
Fault Information
Clear fault and operating status indication
Customizable for OEM Projects
Interface language and display content can be customized according to project requirements.
Comprehensive Safety Protection
Grounding Protection
Helps detect abnormal grounding conditions for safer operation.
Over-Voltage Protection
Helps protect the charger from excessive input voltage.
Under-Voltage Protection
Helps prevent abnormal operation caused by low input voltage.
Over-Current Protection
Protects the charging system when abnormal current is detected.
Leakage Protection
Helps detect electrical leakage and improve charging safety.
Over-Temperature Protection
Helps reduce charging risk when excessive temperature is detected.
Low-Temperature Protection
Provides additional protection under low-temperature operating conditions.
Lightning Protection
Provides additional electrical protection against abnormal voltage events.
UL94 V-0 Flame-Retardant Enclosure
The enclosure uses UL94 V-0 rated flame-retardant material for enhanced safety.
Technical Specifications
Choose the power, connector, communication functions and cable configuration according to your target market.
Parameter
Specification
Item No
MN-AC103
Product Type
OCPP EV Charging Station
Installation
Wall Mounted / Pedestal Optional
Rated Power
7kW / 11kW / 22kW
Input voltage
7KW: 85-265V, 11KW: 380V±10％, 22KW: 380V±10％
Frequency
50Hz / 60Hz
Output voltage
7KW: 85-265V, 11KW: 380V±10％, 22KW: 380V±10％
Output current
7KW: 32A, 11KW: 16A, 22KW: 32A
Phase
7KW: single phase, 11KW & 22KW: three phase
Standby power
3W
Cable specifications
7KW: 3 x 6mm²+ 1 x 0.75mm², 11KW: 5 x 2.5mm²+ 1 x 0.75mm², 22KW: 5 x 6mm²+ 1 x 0.75mm²
Cable length
5m/7m
Cable material
TPU/TPE
Connector
Type 1 / Type 2 / NACS / GB/T
Current Adjustment
Supported
Scheduled Charging
Supported
Display
5.64-inch LCD
Communication
Bluetooth / Wi-Fi / OCPP 1.6 optional
Charging Modes
Plug & Play / RFID / APP
4G
Optional
Ethernet
Optional
Operating Temperature
-30degree to +50degree
Protection Level
IP65
Flame Retardant Rating
UL94 V-0
Charger Size
320 x 220 x 95mm
Certificate
CE/RoHS/UKCA/FCC
Warranty
2years
OEM & ODM EV Charger Solutions
Flexible OEM & ODM support for EV charger distributors, electrical wholesalers, installers and charging solution providers. Product configurations can be customized according to different market and project requirements.
Branding & Appearance
Customer logo
Housing appearance
Front-panel design
Product label
Product Configuration
7kW / 11kW / 22kW options
Charging current configuration
Type 1 / Type 2 / NACS / GB/T versions
Charging cable length
Smart Functions & Connectivity
RFID configuration
Wi-Fi / Bluetooth
APP configuration
OCPP 1.6 optional
4G / Ethernet optional
LCD interface
Documentation & Packaging
Interface language
User manual
Product documentation
Customized packaging
Tell us your target market, required power, connector type and smart charging functions. We can recommend the appropriate configuration for your project.
Compliance & Certification
Compliance documents are available depending on the selected market version and product configuration.
Contact us with your destination market and required configuration to confirm the applicable certificates and test reports.

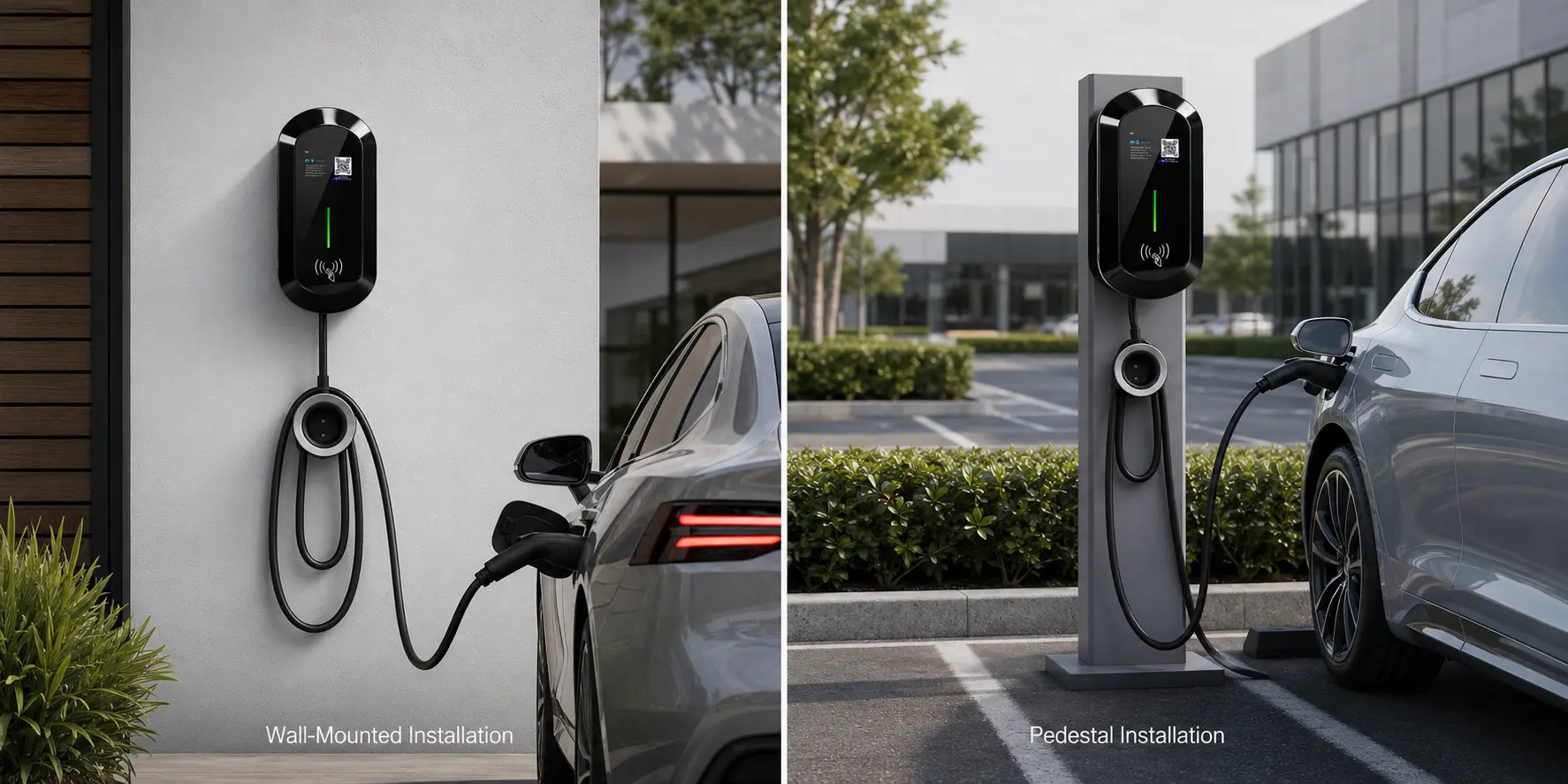

Wall-Mounted & Pedestal Installation
Flexible installation for residential and commercial charging locations.
Ideal Applications
> Private homes & garages
> Apartment buildings
> Office parking
> Hotels & commercial properties
> Public / commercial parking
> Fleet & destination charging
Frequently Asked Questions
Find answers to common questions about our OCPP EV Charging Station
1. Does the charger support Dynamic Load Balancing?
Yes. Dynamic Load Balancing (DLB) is available as an optional configuration. It can automatically adjust EV charging power according to the available electrical capacity of the property, helping reduce the risk of overload and make better use of the existing power supply.
2. Does DLB require an external CT clamp or smart meter?
The DLB solution depends on the selected charger configuration and project requirements. Please confirm the required DLB version with us before ordering, and we will recommend the appropriate load-monitoring solution for your installation.
3. Which OCPP version is supported?
OCPP 1.6 is available as an optional configuration. It allows the charger to connect with compatible charging management platforms for commercial and managed charging applications.Please provide your required backend platform or OCPP requirements so that we can confirm compatibility before ordering.
4. What cable lengths and cable materials are available?
Standard charging cable options include 5 m and 7 m, with TPU or TPE cable material available depending on the selected configuration.Other cable requirements can be discussed for OEM projects.
5. What electrical protection is built into the charger?
The charger incorporates multiple safety protection functions, including:
> Over-voltage protection
> Under-voltage protection
> Over-current and overload protection
> Leakage protection
> Over-temperature protection
> Low-temperature protection
> Grounding protection
> Lightning protection
> UL94 V-0 flame-retardant enclosure
The exact protection configuration should be confirmed according to the selected model and destination market.
6. Which certifications are available for my market?
Compliance requirements vary by country, connector type and product configuration.
CE, RoHS, UKCA and FCC-related compliance options may be available depending on the selected market version. Please tell us your destination country and required charger configuration, and we will confirm the applicable certificates and test reports.
7. Can I order a sample before a bulk order?
Yes. Sample orders are available for product evaluation, installation testing and market testing before a bulk order.Please tell us the required power, connector type and smart functions so that we can recommend the correct sample configuration.
8. What is the MOQ for OEM branding?
The MOQ depends on the type of customization required.Logo printing, product labels, customized manuals and packaging may have different MOQ requirements. Please send us your branding requirements and expected order quantity, and we will confirm the applicable MOQ.
9. What is the warranty period?
We provide a 2-year warranty for this EV charger. During the warranty period, technical support and after-sales service are available for product-related issues.
10. Can the APP and display language be customized?
Yes. LCD interface language and display content can be customized for OEM projects.
APP configuration is also available depending on the selected software and project requirements. Please tell us your required language, branding and APP functions so that we can confirm the available customization options.
Looking for a Reliable Smart AC EV Charger Manufacturer?
Contact Mingnora for wholesale pricing, sample evaluation, OEM branding, custom packaging and technical documentation.
