IP54 | 200–750V DC | CCS2 / CCS1 / GB/T / CHAdeMO
MN-DC201 is a compact portable DC charger for EV workshops, dealerships, fleet service and temporary charging applications.
Available in 7kW, 15kW and 20kW versions, the charger operates from a three-phase AC supply and provides 200–750V DC output. Connector versions are available for CCS2, CCS1, GB/T and CHAdeMO, allowing the same product platform to be supplied for different vehicle markets.
Adjustable charging current, scheduled charging and a 5.64-inch color touch screen are integrated into the unit for everyday service and maintenance work.
Its portable metal housing and carrying handle make it practical for workshops or service teams that need DC charging without installing a conventional floor-standing DC charger.
Key Features of the Portable DC EV Charger
7kW / 15kW / 20kW Power Options
Available in 7kW, 15kW and 20kW versions to match different site power conditions and charging requirements. Customers can select the appropriate output according to vehicle type, available AC supply and required charging speed.
200–750V DC Output
A wide 200–750V DC output range provides compatibility with different EV battery voltage platforms. Maximum output current is available up to 50A, depending on the selected power configuration.
CCS2 / CCS1 / GB/T / CHAdeMO
Connector versions are available for CCS2, CCS1, GB/T and CHAdeMO charging standards. This allows the same charger platform to serve different vehicle markets in Europe, North America, China, Japan and other regions.

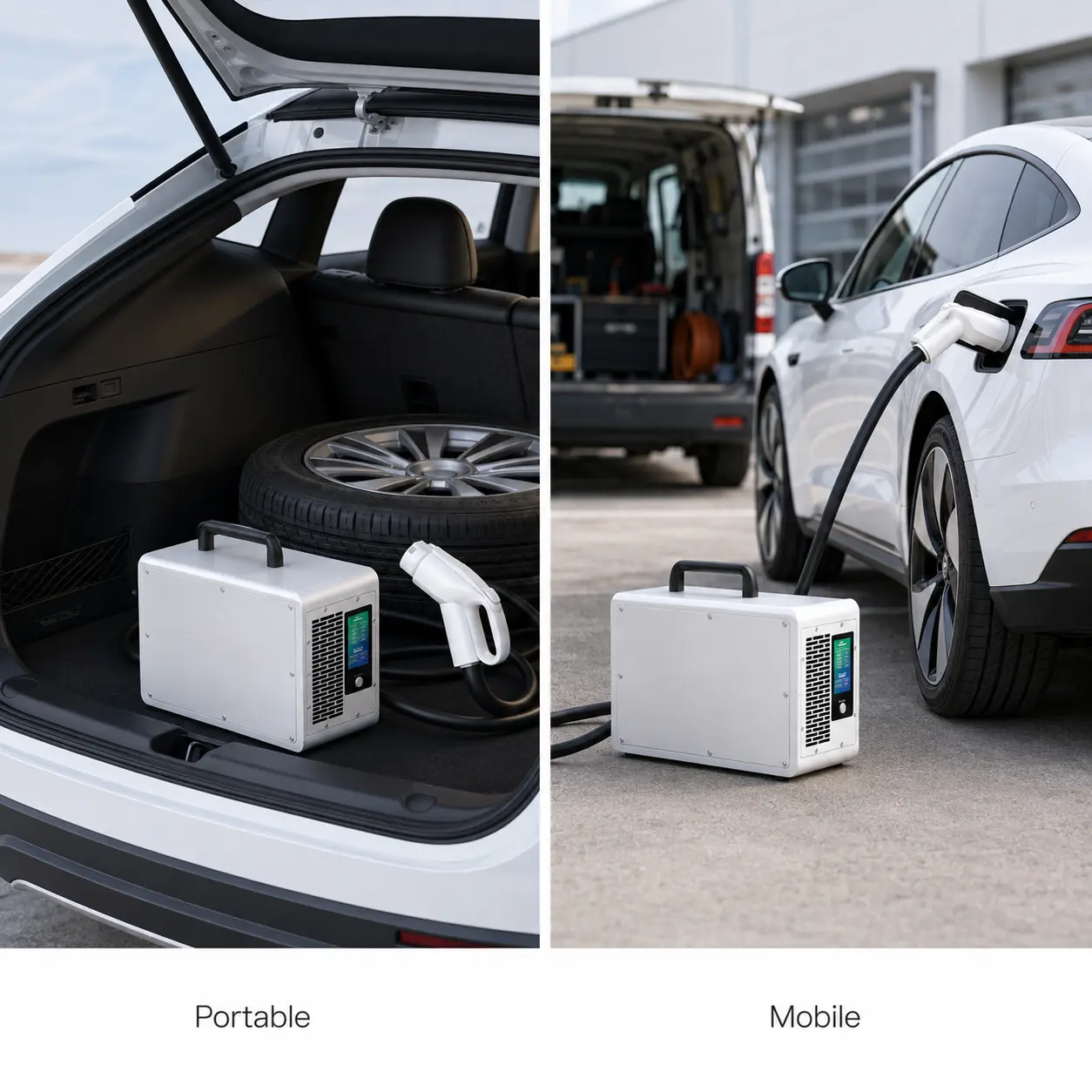

Portable Metal Housing
The compact metal housing and integrated carrying handle make the charger easy to move between vehicles or service locations. No conventional floor-standing DC charging cabinet installation is required.
Adjustable Current & Scheduled Charging
Charging current can be adjusted according to the available power supply and vehicle requirements. Scheduled charging allows operators to set charging times for workshop operation, fleet management or off-peak electricity periods.
5.64-Inch Color Touch Screen
The 5.64-inch color touch screen provides direct access to charging status, operating parameters and charging information, making daily operation and vehicle servicing more convenient for technicians.
IP54 Protection
The metal enclosure is rated IP54, providing protection against limited dust ingress and splashing water. It is suitable for workshops, service centers, fleet facilities and other professional charging environments.
Multiple Safety Protection
Integrated protection functions include over-voltage, under-voltage, over-current, short-circuit, insulation monitoring, over-temperature and connector temperature monitoring to support safe and stable DC charging operation.

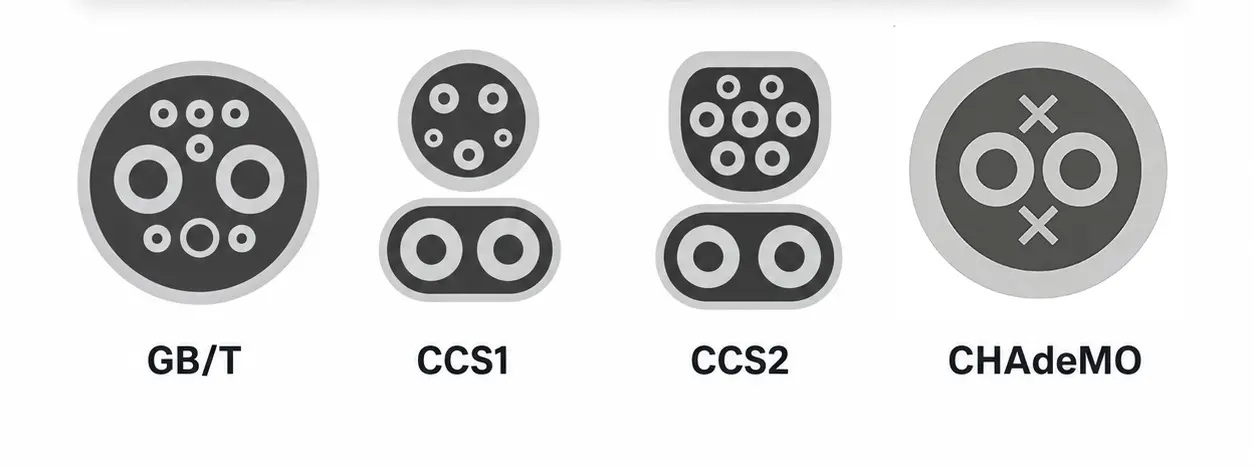

Available Charging Standards
Connector versions are available for different vehicle standards and destination markets.
Technical Specifications
Choose the power, connector, communication functions and cable configuration according to your target market.
Parameter
Specification
Product Type
Portable DC EV Charger
Item No
MN-DC201
Rated Power
7kW / 15kW / 20kW
Input voltage
Three-phase AC 380V + PE
Frequency
50Hz / 60Hz
Output voltage
200–750V DC
Output current
0–50A
Operating Humidity
≤95% RH, non-condensing
Charging Control
Adjustable current / scheduled charging
Installation
Portable / mobile
Display
5.64-inch LCD
Connector Options
CCS2, CCS1, GB/T, CHAdeMO
Operating Temperature
-45degree to +70degree
Protection Level
IP54
Certificate
CE/RoHS/UKCA/FCC
Warranty
2years
Multiple Safety Protection
One charger platform can be configured with different EV charging connectors for different international markets.
Grounding Protection
Detects abnormal grounding conditions before or during charging.
Input Over-Voltage Protection
Protects the charger when the AC input voltage exceeds the permitted range.
Input Under-Voltage Protection
Prevents unstable operation when the AC input voltage falls below the permitted range.
Connector Temperature Monitoring
Monitors charging connector temperature during operation to prevent abnormal overheating.
Output Over-Voltage Protection
Limits or interrupts charging if the DC output voltage exceeds the permitted range.
Over-Current Protection
Protects the output circuit when abnormal charging current is detected.
Short-Circuit Protection
Interrupts the DC output when a short-circuit condition is detected.
Insulation Monitoring
Monitors insulation resistance between the high-voltage circuit and protective earth.
Over-Temperature Protection
Reduces or stops charging when internal temperature exceeds the permitted operating range.
OEM & ODM EV Charger Solutions
MINGNORA supports OEM and ODM cooperation for EV charging distributors and charging solution companies.
Customization
Available Options
Branding
Logo, rating label, model number
Connector
CCS2, CCS1, GB/T, CHAdeMO
Cable
Connector version and cable length
HMI
Display language and interface
Product Configuration
7kW / 15kW / 20kW
Packaging
Neutral or private-label packaging
Documentation
User manual, specification sheet, project documentation
Portable DC Charging Applications
For workshops, dealerships, fleet service, vehicle testing and temporary DC charging.
Designed for Professional Use
The MN-DC201 is intended for applications where a conventional fixed DC charging station is unnecessary or impractical.
It can be used by EV workshops, dealerships, fleet operators, vehicle manufacturers, service companies and EV charging equipment distributors.
Typical customers include:
> EV charging equipment distributors
> Automobile workshops
> EV repair centers
> Car dealerships
> Fleet operators
> EV manufacturers
> Vehicle conversion companies
> Charging service companies
> Energy solution providers
Compliance & Certification
Compliance documents are available depending on the selected market version and product configuration.
Contact us with your destination market and required configuration to confirm the applicable certificates and test reports.
Frequently Asked Questions
Find answers to common questions about our Portable DC EV Charger
1. What power options are available?
The portable DC charger is available in 7kW, 15kW and 20kW versions.
2. Which charging connectors can you supply?
We can supply configurations with CCS2, CCS1, GB/T or CHAdeMO, depending on the destination market and vehicle application.
3. What is the DC output voltage?
The standard output voltage range is 200–750VDC.
4. What is the maximum charging current?
The output current range is up to 50A, depending on the selected power configuration.
5. Is the charger waterproof?
The standard enclosure is rated IP54, providing protection against limited dust ingress and splashing water. It is not intended for immersion or high-pressure washing.
6. Does it need to be permanently installed?
No. The charger is designed as a portable unit and does not require the same permanent floor installation as a conventional DC charging cabinet.
A suitable three-phase AC power supply is still required.
7. Can I order a sample before a bulk order?
Yes. Sample orders are available for product evaluation, installation testing and market testing before a bulk order.Please tell us the required power, connector type and smart functions so that we can recommend the correct sample configuration.
8. What is the MOQ for OEM branding?
The MOQ depends on the type of customization required.Logo printing, product labels, customized manuals and packaging may have different MOQ requirements. Please send us your branding requirements and expected order quantity, and we will confirm the applicable MOQ.
9. What is the warranty period?
We provide a 2-year warranty for this EV charger. During the warranty period, technical support and after-sales service are available for product-related issues.
10. Can the APP and display language be customized?
Yes. LCD interface language and display content can be customized for OEM projects.
APP configuration is also available depending on the selected software and project requirements. Please tell us your required language, branding and APP functions so that we can confirm the available customization options.
Looking for a Reliable Portable DC EV Charger Manufacturer?
Contact Mingnora for wholesale pricing, sample evaluation, OEM branding, custom packaging and technical documentation.
